REMOTE SYSTEMS

ALPHA STABILIZED  •  SL POD  •  MOTO-HEADS  •   POWER POD  •  LIBRA  •  HOT HEAD II

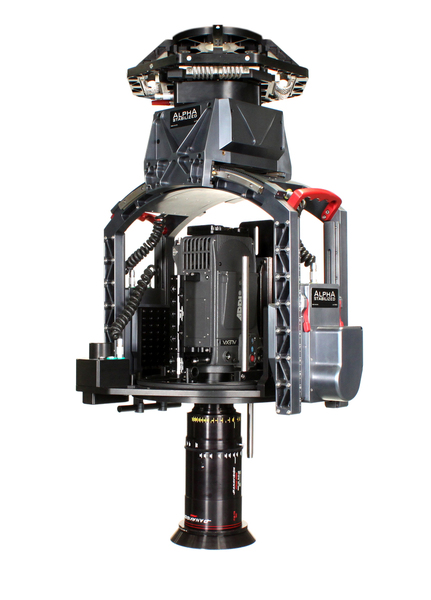

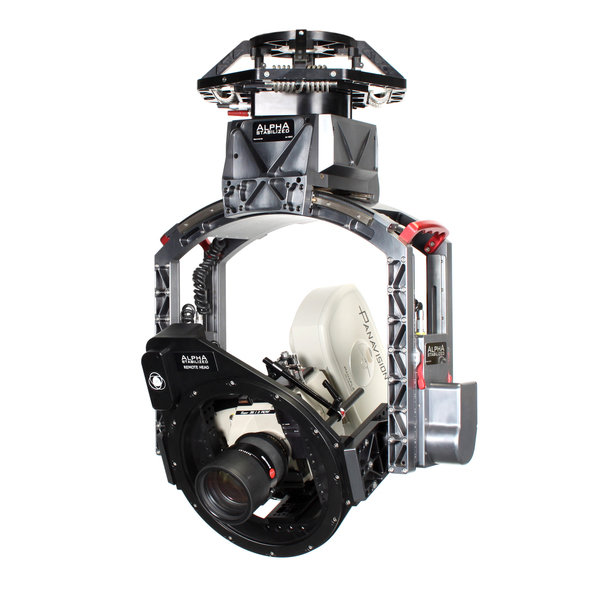

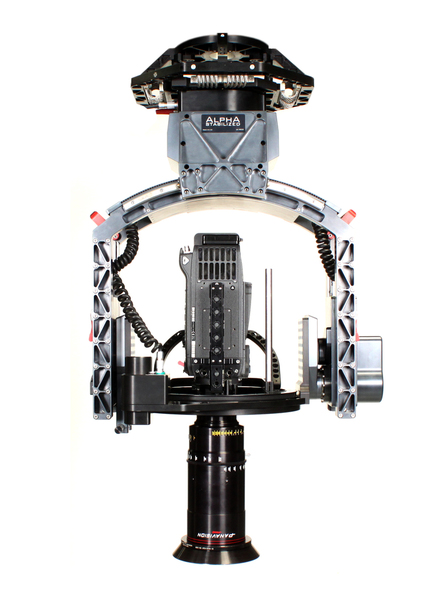

ALPHA STABILIZED Remote Head

 ALPHA STABILIZED

REMOTE HEAD

The ALPHA was built from the ground up with an emphasis on physics and how balance plays an integral part in maintaining a stable platform.  Geo focused on enhanced stability through innovative design.  This bold new platform utilizes 3D design software as well as the latest in digital technology with backlash-free gearboxes to insure precise movement in a product that is lightweight yet rigid.  The mechanical design is robust and adaptable enough to hold a variety of cameras as well as 3-D rigs with a unique dovetail system for fast adjustment of head size.

The ALPHA is low maintenance, easy to use and sets a new standard for reliability.

  • Slip rings for 360 degree operation
  • Simple BNC control cable or wireless
  • Operation from wheels, pan-bar or joystick
  • Unique dovetail system for fast adjustment of head size
  • Stabilization on all or select axis
  • Built in power for cameras and lens control
  • Auto Horizon level
  • Programmable limits
  • Repeatable
  • Head weight – 55lbs (25Kg)
  • Max Payload – 150lbs (68Kg)
  • 3D Capable



Visit alphastabilized.com for more information.

ALPHA Brochure
ALPHA Brochure.pdf
Adobe Acrobat document [397.5 KB]

SPECS PDF:

Printer Friendly PDF
ALPHASpecifications.pdf
Adobe Acrobat document [704.1 KB]

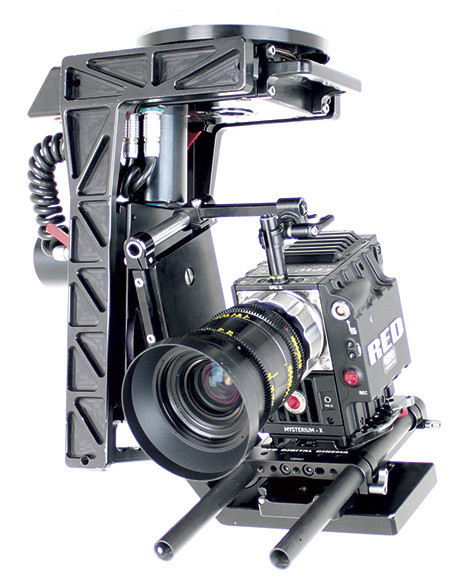

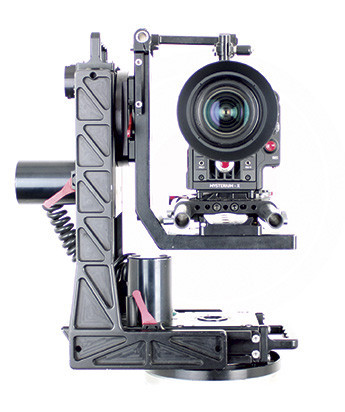

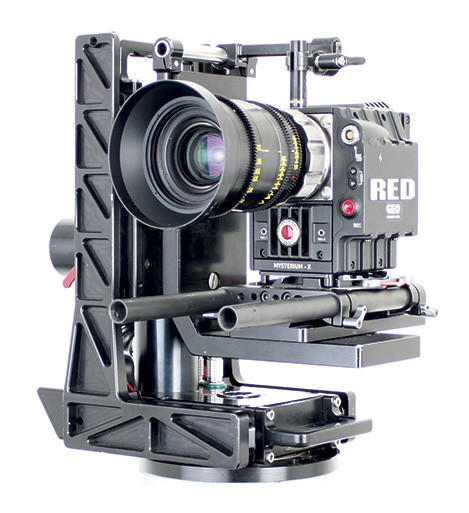

SL Pod Remote Head

 SL POD

2-AXIS REMOTE HEAD

 A small and lightweight 2-axis remote head. The SL Pod boasts a rigid, adjustable frame, powerful motors, repeatability, soft stops and wireless operation. It can quickly change from upright to under slung modes and can accommodate a variety of cameras. Available with wheels or joystick controls.

  • Small Upright/Underslung: 12” X 15” X 7”
  • Fully Extended: 22.5” X 15” X 7”
  • Weight: Approx. 20lbs.
  • Payload: 60lbs.

SPECS PDF:

Printer Friendly PDF
SL Pod.pdf
Adobe Acrobat document [660.1 KB]

GEO MOTO-HEADS

Small Remote Systems for Digital Cameras



MOTO-PAN

Remote Pan Head

The Moto-Pan wireless remote system is a modular pan head specifically designed for use with the smallest cameras.  The Moto-Pan is lightweight and completely wireless up to ¼ mile and comes with a Preston Microforce handset. Includes a standard Mitchell and cheese plate mount.

Perfect for Car Mounts, Hostess Trays

or any confined space where you need pan without the space for an operator.

SPECS:

  • Diameter: 8"
  • Weight: 7lbs. (without camera)

MOTO-ROLL

3rd Axis Roll Ring

The Roll Ring is a 360° digitally controlled roll ring that can stand alone or adapt to most 2-axis remote heads.  The Roll Ring is controlled by a Preston Digital Micro Force zoom control which, upon request, can be outfitted with wireless capability.

SPECS:

  • Height: 17"
  • Width: 18"
  • Weight: 13.5 lbs.
  • Inside Diameter: 15"

MOTO-DUTCH

Remote Dutch Head



SPECS:

  • 5"H X 8"W X 9"D (Compact)
  • 9"H X 10.5"W X 9"D (Extended)
  • Weight: 5 lbs. (Without Camera)
  • 45º Dutch

MOTO-HEADS SPECS PDF

Printer Friendly PDF
Moto-Heads.pdf
Adobe Acrobat document [628.7 KB]

LIBRA HEAD

3-Axis Stabilized Remote Head

 SPECS:

  • 3-Axis stabilization
  • Upright height: 22"
  • Underslung length: 30"
  • Outside width: 20"
  • Weight: 55lbs.



Additional Accessories:

  • Preston FIZ lens control
  • HD Monitor
  • Yeager Cart
  • Batteries

SPECS PDF:

Printer Friendly PDF
Libra.pdf
Adobe Acrobat document [571.5 KB]

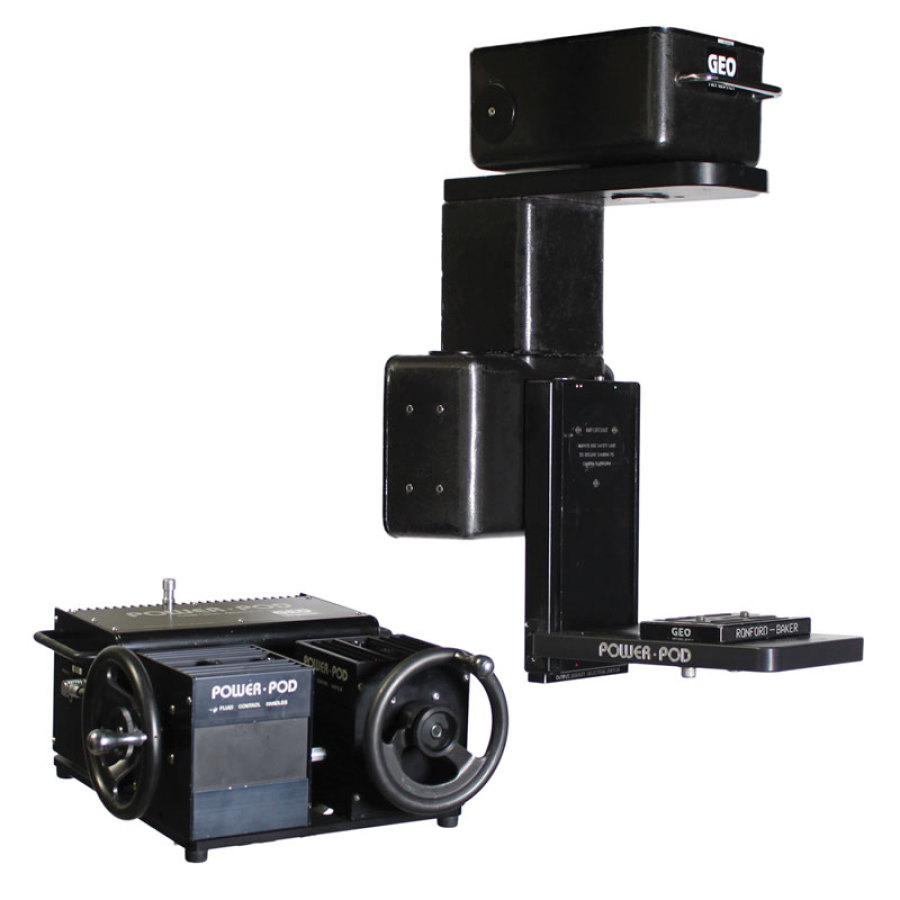

POWER POD CLASSIC

2 - Axis Remote Head

SPECS:

  • 2-Axis Analog
  • Continuous 360° in both axis
  • Upright height: 27"
  • Underslung length: 38"
  • Outside width: 17" to 27"
  • Weight: 60lbs.



 Additional Accessories:

  • Preston FIZ lens control
  • HD Monitor
  • Yeager Cart
  • Batteries

HOT HEAD II

2-Axis Remote Head

SPECS:

  • 2-Axis analog
  • Continuous 360° in both axis
  • Upright height: 27"
  • Underslung length: 38"
  • Outside width: 17" to 27"
  • Weight: 60lbs.



Additional Accessories:

  • Preston FIZ lens control
  • HD Monitor
  • Yeager Cart
  • Batteries
